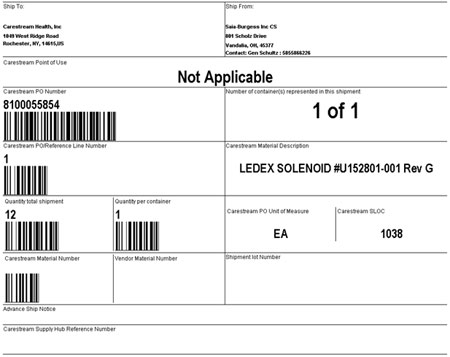

Barcoding Shipping Document Requirements

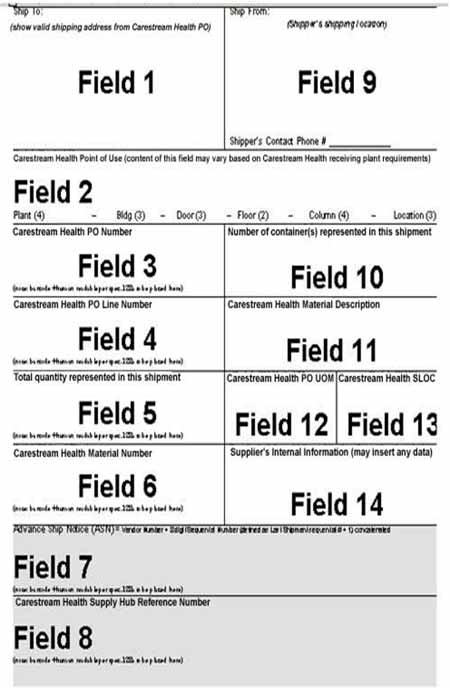

Field Title: Carestream Point of Use
Characteristic: REQUIRED (Enter “Not Applicable” if none is provided by Carestream)
Data Content: Carestream internal point of use (NOTE: 46 pt. font  size (use maximum available) required for visibility on 8.5 x 11 size label) other size acceptable..

Field Title: Carestream PO Number
Characteristic: REQUIRED (max characters = 11) – (NOTE: any dashes, slashes or spaces in any Carestream PO number must be STRIPPED OUT.  This is for the Purchase Order, Field 3, only)  Always print the SAME # of characters transmitted by Carestream.
Data Content: Purchase Order number

• Must be BOTH Bar Code & human readable text.
• Symbology to be #128b  (FONT SIZE = 14pt. Minimum)

Field Title: Carestream PO/Reference Line Number
Characteristic: REQUIRED (max characters = 5) MUST always “zero fill” to 5 places.
Data Content: applicable PO line item number

• Must be BOTH Bar Code & human readable text.
• Symbology to be #128b  (FONT SIZE = 14pt. Minimum)

Field Title: Quantity Total Shipment
Characteristic: REQUIRED (max characters = 13)
Data Content: TOTAL numeric quantity sent in this shipment per the PO unit of measure.  Receiving uses this amount to record the  TOTAL quantity of the current shipment against the appropriate PO  line item.

• Must be BOTH Bar Code & human readable text.
• Symbology to be #128b  (FONT SIZE = 14pt. Minimum)

Field Title: Carestream material number
Characteristic: REQUIRED (max characters = 18) Always print the SAME # of characters transmitted by Carestream. (if provided by Carestream)
Data Content: Carestream material number

• Must be BOTH Bar Code & human readable text.
• Symbology to be #128b  (FONT SIZE = 14pt. Minimum)

Field Title: Advance Ship Notice
Characteristic: OPTIONAL
Data Content: Advanced Shipment Notification Number.

• Must be BOTH Bar Code & human readable text
• Symbology to be #128b

Advance Ship Notice (ASN) depicted in Field 7 is NOT in general use at this time.  Unless ASN is fully implemented between your company and Carestream
ASN format = Carestream Vendor Number + 8 digit Sequential Number (defined as Last Shipment sequential # + 1) concatenated) (eg. 105491200000001) (NOTE: if Carestream provides a Supply Hub Reference Number (Field 8) then DO NOT transmit an ASN number to Carestream)

Field Title: Carestream Supply Hub Reference Number
Characteristic: REQUIRED (max characters = 10)

Field Title: Ship From
Characteristic: REQUIRED
Data Content: Shipped FROM Name & Address, plus contact phone number

Field Title: Number of container(s) represented in this shipment
Characteristic: REQUIRED
Data Content: number of total containers referenced in this shipment  NOTE: The Container field denoted as Field 10 on the label is for entry of the total number of CONTAINERS shipped.  If 10 pallets are shipped together then each pallet label will be marked 1 of 10, 2 of 10 etc. OR just marked 10 pallets  A container is defined as an individual shipping container. This means that if 4 items are over packed into a single case then the total number of containers will be 1. Thus only each CONTAINER has to have a separate Carestream inbound shipping label.

Field Title: Carestream Material Description
Characteristic: REQUIRED (if provided on PO)
Data Content: description of material ordered by Carestream

Field Title: Carestream PO Unit of Measure
Characteristic: REQUIRED
Data Content: show the unit of measure as defined by the purchase order

Field Title: Carestream SLOC
Characteristic: REQUIRED(Enter “NO DATA” if none is provided by Carestream)
Data Content: alpha / numeric location reference for internal Carestream use

Field Title: Shipment Lot Number
Characteristic: OPTIONAL
Data Content: Leave blank, or enter any Supplier data
