Q-Rad Systems

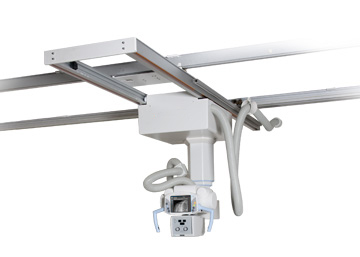

Ceiling-mounted tube

• Offers advanced ergonomic features, with virtually unlimited positioning capabilities
• Allows a wide range of vertical travel with its telescopic column
• Tracks the tube with the table for easier positioning and improved workflow via optional autotracking
• Provides additional exam flexibility with it's broad longitudinal and transverse travel ranges extension options available for even more range.

Freestanding tube stand

• Eliminates the cost and installation hours for additional ceiling mounted rails for facilities that can’t support a ceiling mounted support system
• Offers a wide range of longitudinal and transverse travel, column rotation, tube angulation
• Allows easier positioning and improved workflow with optional autotracking
• Extended floor tracks available for extra positioning flexibility

Standard tube stand

• Offers a selection of floor and wall tracks, speedy installation and reliability with its flexible design
• Features fingertips controls for easy access to multifunction switches for speedy adjustment of longitudinal, vertical and tube angulation

TECHVISION™ on Tube Control with digital preview available on Floor or Ceiling Stands

• Gives technologists full remote generator control inside the exam room with a multi-color touch-panel screen mounted at the tube stand's hand grip
• Technologists can use the color touch display to easily view and set up all technique parameters, as well as access set-up functions right at tube-side
• Provides full two-way generator integration with the DR console for control and display of generator parameters
• Provides a preview image display in <3 seconds for maximum productivity and patient care

Vertical wall stand

• Facilitates easy standing exams with its extensive vertical travel range
• Accommodates weight-bearing knee exams for small children up to very tall adult patients
• Choose from Analog Buckys or Wireless on Demand trays, that accommodate wireless detectors 14”x17”,17”x17”, or fixed detectors and removable grids

Side-mount wall stand option available with loading from left or right side

• Features a narrower base to save major space in smaller rooms
• Available with loading from left or right side

Exam Tables

• Choose from Fixed , Floating and Elevating tables to make patient positioning easy
• Choose from Analog Buckys or Wireless on Demand trays, that accommodate wireless detectors 14”x17”,17”x17”, or fixed detectors and removable grids

Generator Power and Control

• Broad range of generator options available
  • Input Power Choice Three Phase 380-480 VAC,208-240,Single Phase 208-240VAC, or Stored Energy for low input power applications.
  • Output power ranging from 32 kW to 80 kW with tube choices ranging from 140kHu to 600 kHU
  • Choose from Touch Screen Analog or Digital Consoles
  • Integrated Collimator selection with optional Dose Area Product (DAP) meter

Table Top Detector/Cassette Holder

• Quick and easy positioning on the x-ray table top
• Accommodates the wireless DRX detector, CR or film cassettes up to 17” x 17” (43 x 43 cm)
• Assists in cross-table lateral exams and other specialty views
• Effortless maneuverability with table top scratch protection

Lateral Detector/Cassette Holder

• Mounts to table rails
• Accommodates the wireless DRX detector, CR or film cassettes up to 17” x 17” (43 x 43 cm)
• Swivel arm (+/-90°) allows for angled table-top positions
• Position receptor either at or below table top to eliminate image cut-off during cross-table exams
• Complete receptor control (+/-35°) for best patient positioning

Rolling Lateral Detector/Cassette Holder

• Quick and secure maneuverability around the x-ray exam room
• Accommodates the wireless DRX detector, CR or film cassettes up to 17” x 17” (43 x 43 cm)
• Assists in cross-table lateral exams and other specialty views
• Position receptor either at or below table top to eliminate image cut-off during cross-table exams
• Adjustable height positioning with vertical travel of up to 45.9” (116.6 cm); single-handed vertical adjustment locking
• Receptor rotation +/- 90° for more angle flexibility
• Receptor tilt: 0° through 90°
• Quick locking 5” caster wheels

Step Rolling Stand

• Pick from two (2) or three (3)  step weight bearing rolling stand accommodates weight bearing AP and lateral feet and ankle exams
• Technologist can easily position the stand for exams
